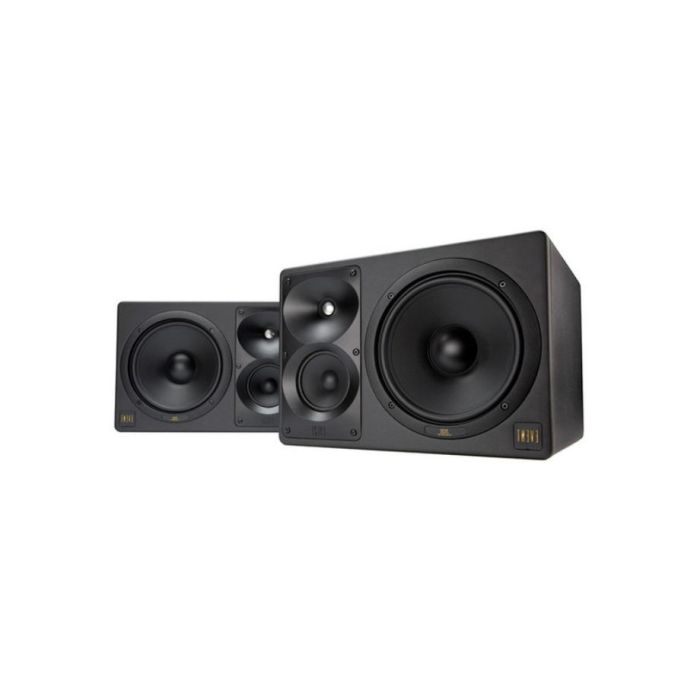

Event 2030 Dynamic 3-Way Studio Monitors- Pair
The Event 2030 is a three-way studio monitoring system that provides unmatched performance in its class.
Event's monitoring pedigree needs no introduction. As the speaker family that made studio monitoring accessible to countless artists and engineers with the legendary 20/20, Event has become a staple in studios the world over.
Now the time has come to build upon this heritage, with the new 2030. Event's very first three-way studio monitoring system.
The 2030 is a category defining three-way studio monitoring system that combines three discrete drivers to allow for incredibly accurate reproduction of the entire audio spectrum.
The Event 2030 is a three-way studio monitoring system that provides unmatched performance in its class.
It combines three discrete drivers with precisely engineered acoustic design, signal processing and amplifier technology to provide an incredibly detailed and wide soundstage with a bass response that far exceeds what most would expect from a box this size.
Product Specs
- Type
- Three-way, bass reflex
- Frequency Response
- 38Hz - 22kHz
- Crossover Frequencies
- 400Hz & 3kHz
- Crossover Type
- Linkwitz-Riley Acoustic -
Fourth order for Low/Mid range
Event Proprietary Acoustic -
Second order for Mid/High range - Low Frequency Filter
- Butterworth Subsonic Second Order (-3dB at 38Hz)
- Acoustic Output - SPL @ 1m, Long term
(80Hz - 20kHz) - 111dB
- Acoustic Output - SPL @ 1m, Peak
(80Hz - 20kHz) - 114dB
- Signal Input
- XLR (balanced)
- AC Input Connector
- 3-Pin IEC
- Average Long Term Power Consumption
- 95 watts
- Quiescent Power Consumption
- <10 watts
- Overdrive Protection
- Event proprietary IC based fast limiting with sliding gain
- Thermal Protection
- Thermal cutoff switch, auto reset
Low Frequency Transducer
- Piston Diameter
- 180mm (7.1")
- Voice Coil Diameter
- 38mm (1.5")
- Former Material
- Kapton
- Voice Coil Wire
- Copper
- Magnet Type
- Ferrite (fully shielded)
- Cone Type
- Mineral Filled Polypropylene
Mid Range Transducer
- Piston Diameter
- 85mm (3.3")
- Voice Coil Diameter
- 25mm (1")
- Former Material
- Glass Fiber
- Voice Coil Wire
- Copper
- Magnet Type
- Ferrite
- Cone Type
- Pressed pulp/Mineral filled polypropylene
High Frequency Transducer
- Piston Diameter
- 19mm (0.75")
- Voice Coil Diameter
- 19mm (0.75")
- Magnet Type
- Neodymium (fully shielded)
- Cone Type
- Aluminium alloy with Ferrofluid cooled magnetic gap
Low Frequency Amplifier
- Frequency Response
- 20Hz - 40kHz(±0.25dB)
(bandwidth limited) - Operating Band Pass
- 20Hz - 400Hz
- Total Harmoic Distortion
- 0.02% 120 Watts into 4 Ohm Load
- Long Term Power @ 4 Ohms
- 80 Watts
- Power @ 4 Ohms
- 120 Watts
- Output Topology
- Class AB with proprietary soft clipping topology
- Cooling
- Convection - Aluminium Heat Sink
High Frequency Amplifier
- Frequency Response
- 20Hz - 40kHz(±0.25dB)
(bandwidth limited) - Operating Band Pass
- 400Hz - 30kHz
- Total Harmoic Distortion
- 0.02% 120 Watts into 4 Ohm Load
- Long Term Power @ 4 Ohms
- 80 Watts
- Power @ 4 Ohms
- 120 Watts
- Output Topology
- Class AB with proprietary soft clipping topology
- Cooling
- Convection - Aluminium Heat Sink
Physical
- Cabinet Construction
- Engineered Composite Wood
- Low Frequency Vent
- High "Q" / High Output Rear Firing Port
- Cabinet Volume
- 16 Litres
- Cabinet Dimensions
- 260mmH x 375mmW x 310mmD
(10.2"H x 14.8"W x 12.2"D) - Cabinet Weight
- 14.6kg (32lb)
- Shipping Dimensions
- 435mmH x 500mmW x 415mmD
(17.1"W x 19.7"H x 16.3"D) - Shipping Weight
- 16.5kg (36lb)
- Operating Temperature Range
- 5-35 deg C / 40-95 deg F
Power Supply
- Type
- Torodial
- Rating
- 270VA
- AC Mains fuse and AC voltage selector
- 100V-120V 5 Amp
220V-250V 2.5 Amp
Manufacturer | EVENT |
---|
