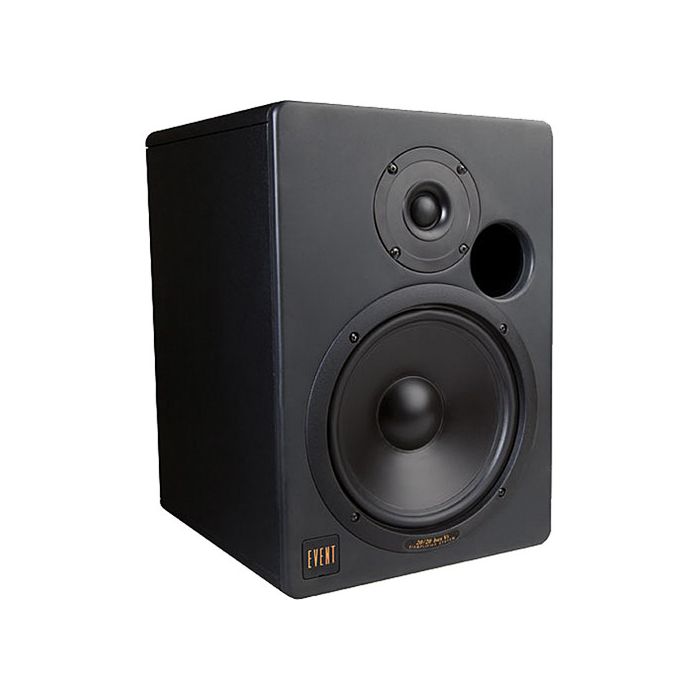

Event 20/20BAS Biamped Monitor V3 (Pair)

Be the first to review this product

Out of stock

SKU

2020BAS

AED 3,465.00

This 2-way front ported speaker offers tonal character and performance strength.

Wishlist Compare

Details

The Event Electronics 20/20BAS Biamped Monitor V3 delivers clarity, transparency, and definition. This 2-way front ported speaker offers tonal character and performance strength. The speaker maintains the transducer design and cabinet volume of the traditional 20/20 and improvises on the high and low frequency amplifiers, cabinet bracing, and overall construction to improve audio characteristics, increase dynamics, and extend reliability. With ideas and technologies incorporated from Event’s flagship Opal speaker, this speaker delivers high output, low distortion, and superior dynamics.

Product Specs

System
Frequency Response	35 Hz to 20 kHz ±2 dB
Crossover Frequency	2,300 Hz
Distortion	3^rd Harmonic At 90 dB SPL, 3.2’ (1.0 m), 500 to 7 kHz: 0.08% At 90 dB SPL, 3.2’ (1.0 m), 200 to 20 kHz: 0.2% At 90 dB SPL, 3.2’ (1.0 m), <200 Hz: 1.5%
Acoustic	Output At 3.2' (1.0 m), Long term (80 Hz to 20 kHz): 105 dB At 3.2' (1.0 m), Peak (80 Hz to 20 kHz): 108 dB
Signal Input	XLR (balanced)

Transducers
Low Frequency Transducer	Piston Diameter: 7.1" (180.3 mm) Voice Coil Configuration: High temperature single coil Voice Coil Diameter: 1.5" (38.1 mm) Former Material: High-strength polyamide - glass fiber Magnet Type: Ferrite Cone Type: Mineral-filled polypropylene Magnetic Shielding: Bucking magnet and steel cap
High Frequency Transducer	Dome Diameter: 1.00" (25.4 mm) Voice Coil Diameter: 0.98" (24.89 mm) Magnet Type: Ferrite Dome Type: Silk Gap Design: Ferrofluid cooled Magnetic Shielding: Bucking magnet

Amplifier
Frequency Response	20 Hz to 20 kHz (±0.2 dB)
Band	Operating Band Pass: 20 Hz to 2,400 Hz (LF) / 2,400 Hz to 20 kHz (HF)
Total Harmonic Distortion (THD)	0.01% 120 W into 4 Ω Load
Power	Long Term at 4 Ω: 80 W Burst Power at 4 Ω: 120 W
Topology	Output: Class AB
Trim	LF: Constantly variable ±3 dB HF: Constantly variable ±3 dB
Subsonic Filter	-3 dB at 30 Hz
Protection	Driver: Current limiting Temperature: Thermal cut-off switch
Indicators	Event badge On mode
Cooling	Convection - Aluminum heat sink
Power Requirements	Voltage selector 110 to 120 V or 220 to 240 V, 50/60 Hz, 180 VA Power via detachable 3 circuit IEC-type line cord

Physical
Cabinet	Construction: MDF Low Frequency Vents: Front port
Dimensions (W x H x D)	Cabinet: 10.2 x 14.8 x 11.8" (259.0 x 379.9 x 299.7 mm)
Weight	Cabinet: 37.48 lb (17.00 kg)
