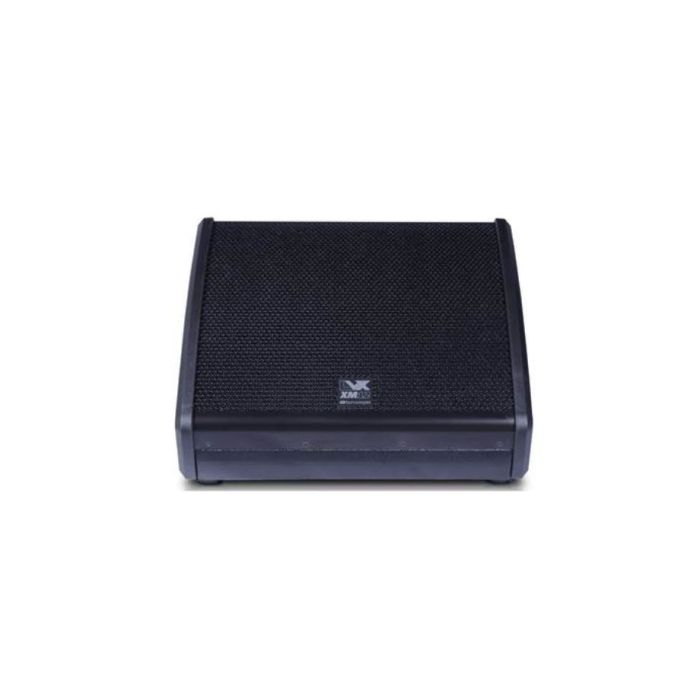

DB Technologies LVX XM12 Professional Stage Monitor
Brand
D B TECHNOLOGIES
Equipped with heavy duty components and featuring a particular coaxial horn design, LVX XMs wedge deliver a powerful yet clear sound quality, raising the bar for intelligibility, definition and ease of use.
ENHANCED COAXIAL HORN DESIGN
Lvx XM’s design enhance the benefits of coaxial horn wedges concept.
dBTechnologies designed a horn that not only shape high frequencies’ directivity, but also acts as a phase plug for the woofer, boosting and lighting up the vocal band, thanks also to the advanced DSP featuring FIR filters processing.
As a result, not only the horn contributes to deliver a bright audio performance with a uniform throw pattern, but also contributes to reduce the overall dimensions of the system and protect the internal components, reinforcing the cabinet structure.
8 preset equalizations for all stage requirements
LVX XM monitors feature an advanced DSP offering eight variable presets in order to easily adapt to different stage requirements and to the varying demands of vocalists, instrumentalists as well as audio playback applications.
Solid and road ready
The cabinets are constructed in sturdy plywood and comes with 2 integrated side handles allowing easy transport and stage set up operations. A pole mount cup on one side allow to put the system on a pole for vertical use (eg. as drummer monitorning or for audio playback applications).
Product Specs
Frequency Response [- 6 dB] 69 - 17,800 Hz
Max SPL 127 dB
HF 1 " Exit 1,4" v.c.
Directivity (HxV) 90° x 70°
LF 12", 2,5 v.c.
Amp Technology Digipro® G3
Amp Class Class D
Power RMS 600 W
Peak Power 1200 W
Power Supply SMPS with PSU Auto-range
Power Connection PowerCon In/Link
Cooling Convection
Controller DSP 56 bit
Converter AD/DA 24 bit/48 kHz
System Presets 8 presets
Limiter Peak, RMS, Thermal
Processing (filters) Linear Phase FIR Filters
Controls Rotary 8 positions,
MIC/LINE switch
Mains Connections PowerCON in/link
Signal Input 1xCombo IN (XLR/Jack)
Signal Output 1xXLR link OUT
USB connector Mini USB B-Type (service only)
Housing Plywood with black PVC Cover
Grille Metal, black painted
Handles 2, chassis integrated
Pole Mount D36 mm
Width 515 mm (20,28 in)
Height 460 mm (18,11 in)
Depth 370 mm (14,57 in)
Weight 20,1 kg (44,31 lbs)
| Manufacturer | D B TECHNOLOGIES |
|---|
