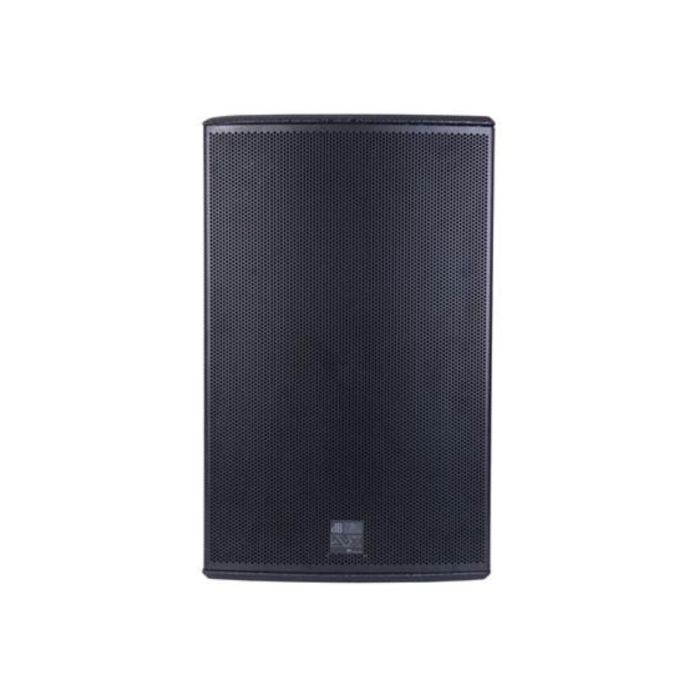

DB Technologies DVX P15 15" 2-Way Passive Speaker
Brand
D B TECHNOLOGIES
DVX P15 is a powerful 15” / 1.4” 2-way passive loudspeaker whose plywood cabinet has been specifically designed to render speech contents, background and any other kind of music in medium to large sized rooms. It is also the right choice in case of use as a full-range FOH speaker or a powerful drum monitor.
DVX P15 is a powerful 15” / 1.4” 2-way passive loudspeaker whose plywood cabinet has been specifically designed to render speech contents, background and any other kind of music in medium to large sized rooms. It is also the right choice in case of use as a full-range FOH speaker or a powerful drum monitor.
Provided with a high-quality 15” woofer, a 1.4” neodymium compression driver on a rotatable CD horn and a premium crossover with precision filters, it assures maximum speech intelligibility and delivers punchy, assertive bass response without requiring an added subwoofer. Not only, but combined with its compact dimensions, light weight and sturdy construction, it is rightfully placed among dBTechnologies high-end passive loudspeakers.
Product Specs
Speaker Type
2-Way Passive Speaker
Acoustical data
Nominal Power Rating
500 W/RMS
Program Power Rating
1000 W
Impedance
8 Ohms
Sensitivity 1W@1m
100 dB
Frequency Response [+/- 3dB]
70 - 19.000 Hz
Max SPL
133 dB
HF
1.4"
Voice Coil HF
2.5"
Driver Protection
PTC
Directivity
90X40°
Horn
CD Horn Aluminium
Rotatable Horn
YES
Crossover Frequency (passive)
1400 Hz
LF
15"
Voice Coil LF
3"
Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing
Multiplex plywood
Rigging Points
12 x M10
Width
430 mm (16.9 in)
Height
690 mm (27.2 in)
Depth
450 mm (17.7 in)
Weight
26.1 kg (57.5 lbs)
| Manufacturer | D B TECHNOLOGIES |
|---|
