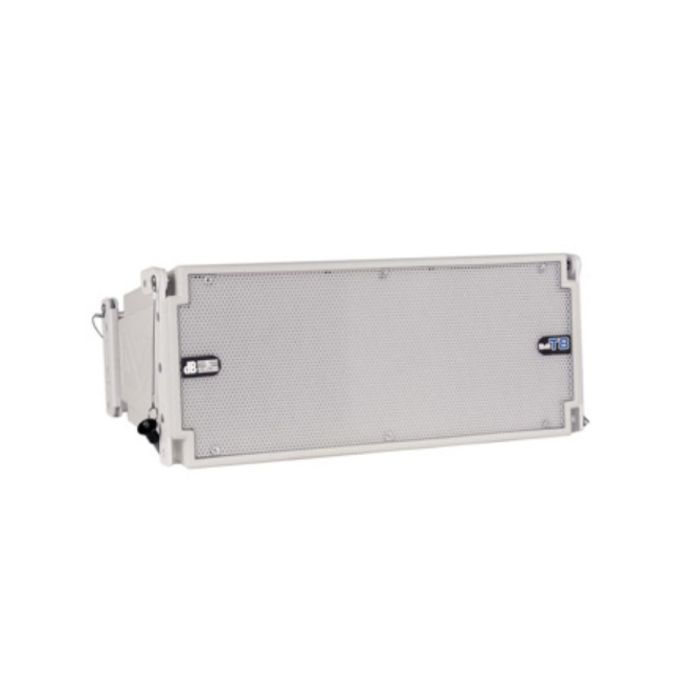

DB Technologies DVA T4 White Active 3- Way Line-Array Module
Brand
D B TECHNOLOGIES
A three-way active line array system, the DVA T4 has set new standards in the sound reinforcement industry since its 2007 market launch.
A three-way active line array system, the DVA T4 has set new standards in the sound reinforcement industry since its 2007 market launch.
Better yet, it has brought the benefits of real line array technology to a much wider range of users.
Equipped with top-notch features and engineered formaximum versatility, the DVA T4 delivers premium performance and ensures excellent return on investment.
Product Spec
Technical Data
Speaker Type: 3-Way Active Line Array Module
Acoustical data
Frequency Response [+/- 3dB]: 80 - 19.000 Hz
Max SPL: One Unit: 128 dB
HF: 2x1 "
Voice Coil HF: 1.4 "
Directivity: 100x15° Single unit
MF: 1x 6.5 "
Voice Coil MF: 1.5 "
LF: 8 "
Voice Coil LF: 2.5 "
Amplifier
Amp Technology: Digipro®
Amp Class: Class D
HF Amp: 100 W RMS
MF Amp: 100 W RMS
LF Amp: 220 W RMS
Cooling: Convection
Processor
Controller: Analog Devices
AD/DA Converter: DSP 24 bit/48 kHz
System Presets: 8, HF/Low-mid correction
Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF: 1800 Hz
Slope MF-HF: 24 dB/Octave
Crossover Frequency LF-MF: 400 Hz
Slope LF-MF: 24 dB/Octave
Input
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Power Socket: 1x Powercon In 1x Powercon Out
Voltage Range: 90 - 240 V
Mechanics
Housing: Polypropylen PP reinforced
Housing Design: Trapezoidal 15°
Rigging Points: Integrated rigging hardware
Width: 580 mm (23.2 in)
Height: 240 mm (9.6 in)
Depth: 327 mm (13.08 in)
Weight: 13.8 kg (30.42 lbs)
| Manufacturer | D B TECHNOLOGIES |
|---|
