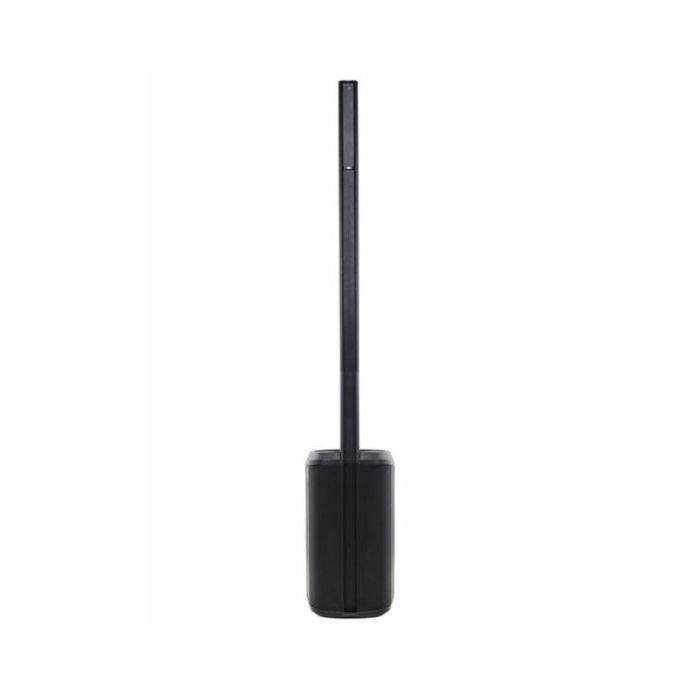

Bose L1 Compact Portable Line Array Speaker
Brand
BOSE
Bose's smallest and most portable system for an audience of up to 100. It has a six-speaker articulated line array, and it includes an integrated two-channel mixer with ToneMatch® presets on each channel.
For indoor applications only.
Key Features
High-performing, powered, portable two-way loudspeaker system with a 180° H x 40° V nominal dispersion designed for the production and reproduction of live music, music playback, speeches and A/V sound reproduction
Articulated line array loudspeaker technology produces wide, uniform sound coverage throughout the entire listening area—even off to the extreme sides
Curved array design provides 40° of vertical coverage
Integrated ToneMatch® presets contain hardwired equalization curves for dynamic handheld microphones and acoustic guitars
Lightweight, interlocking components for easy transport
Offers both collapsed and extended setup positions
Product Specs
| System Type | Self powered, two-way |
| Frequency Response (+/-3 dB) 1 | 65 Hz - 14 kHz |
| Frequency Range (-10 dB) 1 | 50 Hz - 16 kHz |
| Nominal Dispersion | 180° H x 40° V |
| Maximum SPL @ 1 m 2 | 106 dB SPL (112 dB SPL peak) |
| Crossover Frequency | 400 Hz 4th order Butterworth |
| System Power Rating | 130 W |
| Distortion at Rated Power | 0.1 % Max (30 Hz - 15 kHz) |
| System Limiter | Dynamic limiter |
| Overload Protection | Fuse/NTC |
| Power Indicator | Blue LED: system on |
| aster Line Output | 1/4" balanced TRS or unbalanced TS: Nominal +2.2 dBu, Max +20 dBu |
| Record Out | (2) RCA unbalanced: Nominal -3.8 dBu, Max +14 dBu |
| AC Mains | IEC Connector |
| Enclosure | Power Stand: Polypropylene Extensions and Array: ABS |
| Grille | Powder-coated perforated steel grille |
| Dimensions (Enclosure only) | Assembled height, collapsed position: 16.5" (418 mm) Assembled height, extended position: 78.5" (1995 mm) |
| Net Weight | Power Stand: 24.6 lb (11.2 kg) Extensions (each): 2.3 lb (1.1 kg) |
| Shipping Weight | Power Stand: 30.0 lb (13.8 kg) Extensions: 7.5 lb (3.4 kg) |
| Manufacturer | BOSE |
|---|
