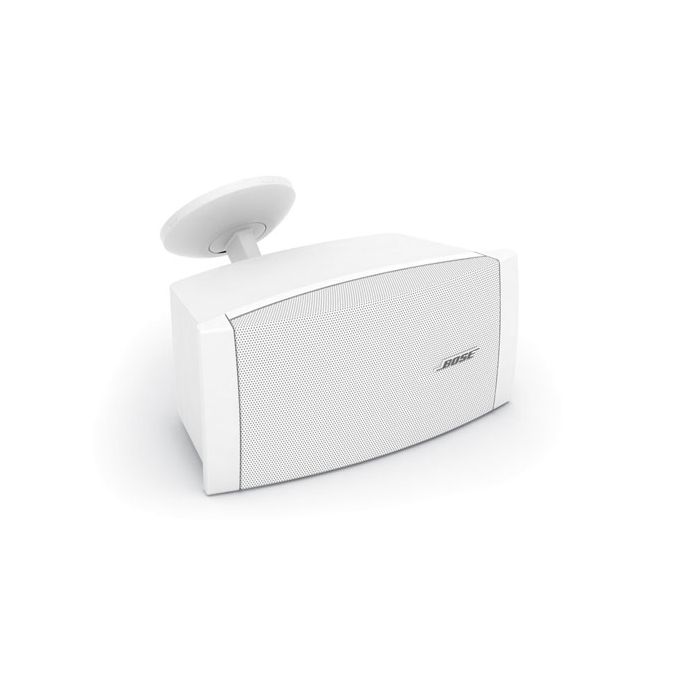

Bose FreeSpace DS 100SE Loudspeaker, White

Out of stock
SKU
FREESPACE-DS100SE-WHITE
AED 1,372.00
Premier, high-performance, full-range surface-mount loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. Features a rotatable array that delivers a 180° x 75° coverage pattern and a frequency range down to 60 Hz. For indoor and outdoor applications.

Premier, high-performance, full-range surface-mount loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. Features a rotatable array that delivers a 180° x 75° coverage pattern and a frequency range down to 60 Hz.

For indoor and outdoor applications.

Key Features

  • Extended-range, high-performance loudspeaker with two (2) 2.25" (57 mm) Twiddler® drivers and a single 5.25" (133 mm) woofer in a ported enclosure designed for surface-mounted foreground and background music and paging applications

  • Proprietary Articulated Array® speaker configuration provides 180° H x 75° V coverage out of the box when the loudspeaker is mounted horizontally. Array can be rotated for horizontal or vertical use

  • Simple 1->2->3 installation system. Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw

  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap settings from under front end cap

  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality

  • Supported by a suite of accessories, including wall-mount bracket, ceiling-mount bracket, pole-mount bracket and junction boxes

  • Package Contents 1 loudspeaker, mounting bracket





Product Specs

System Performance
Frequency Response (+/-3 dB) 175 Hz - 18 kHz
Frequency Range (-10 dB) 160 Hz - 20 kHz
Nominal Dispersion180° H x 75° V
Recommended High-Pass Filter55 Hz high-pass filter
Loudspeaker EQRecommended
Overload ProtectionLamp
Long-Term Power Handling 2100 W (400 W peak)
Sensitivity (SPL / 1 W @ 1 m) 385 dB SPL
Maximum SPL @ 1 m 4105 dB SPL (111 dB SPL peak)
Nominal Impedance8 Ω (transformer bypassed)
Transformer Taps (70/100 V)70 V: 12.5 W, 25 W, 50 W, 100 W
100 V: 25 W, 50 W, 100 W
Transducers
Driver ComplimentTwo (2) 2.25" (57 mm) Twiddler® drivers in an Articulated Array® speaker configuration
5.25" (133 mm) woofer
Physical
EnclosurePC/ABS, textured
GrillePowder-coated steel grille
EnvironmentalOutdoor per IEC 529 IP55
ConnectorsThree-terminal barrier strip integrated on included mounting bracket. Optional accessories available for use when ceramic connector and thermal fuse are required. Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm)
Suspension / MountingIncluded bracket allows for horizontal or vertical mounting positions, each with either pitch or yaw adjustment. Insert on rear of enclosure sized for M4 x 14 mm screw for use with safety chain
Dimensions (Enclosure only)7.0" H x 15.0" W x 8.5" D (178 mm x 381 mm x 216 mm)
Depth with wall mount bracket: 11.0" (280 mm)
Net Weight14.0 lb (6.4 kg)
Shipping Weight16.9 lb (7.7 kg)
