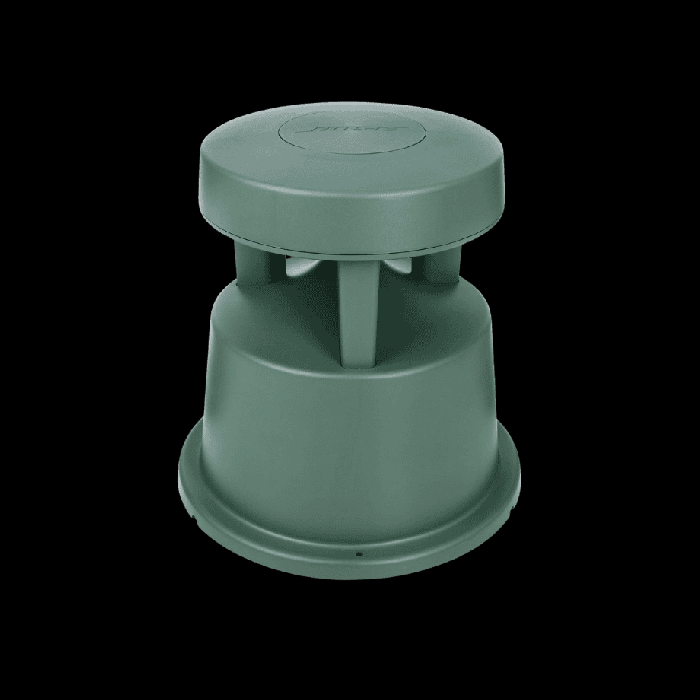

Bose FreeSpace 360P Series II Loudspeaker
Brand
BOSE
Full-range environmental loudspeaker designed to blend with landscaping for in-ground or above-ground applications, such as shopping malls, outdoor restaurants, resorts and theme parks. Features 360° horizontal coverage and frequency range down to 60 Hz.
For indoor and outdoor applications.
Key Features
Full-range environmental loudspeaker with one downward firing 4.5" (114 mm) advance composite environmental full-range driver for in-ground or above-ground mounting
Domed port grille reflects sound into the listening area for clear, consistent performance
Cabinet shape acts as acoustic diffuser directing mid- and high-frequency energy out towards listeners. Base of loudspeaker acts as a tuned, multi-chambered ported enclosure
Multi-tap line transformer provides easy-to-change tap settings
Tamper-resistant design
Internal speaker protection circuit safeguards drivers
Product Specs
| Frequency Response (+/-3 dB) 1 | 70 Hz - 10 kHz |
| Frequency Range (-10 dB) 1 | 60 Hz - 15 kHz |
| Nominal Dispersion | 360° H x 50° V |
| Recommended High-Pass Filter | 60 Hz high-pass filter |
| Loudspeaker EQ | Recommended |
| Overload Protection | PTC |
| Long-Term Power Handling 2 | 80 W (320 W peak) |
| Sensitivity (SPL / 1 W @ 1 m) 3 | 87 dB SPL |
| Maximum SPL @ 1 m 4 | 100 dB SPL (106 dB SPL peak) |
| Nominal Impedance | 4 Ω (transformer bypassed) |
| Transformer Taps (70/100 V) | 10 W, 20 W, 40 W, 80 W |
| Enclosure | Glass-reinforced polypropylene, textured |
| Environmental | Outdoor per IEC 529 IP35 |
| Connectors | External multi-wire cable with wire nuts included |
| Suspension / Mounting | Three (3) #10 (M4) holes in base. Three #10 M4 screws required |
| Dimensions (Enclosure only) | Diameter: 14.5" (368 mm) Height: 14.9" (379 mm) |
| Net Weight | 14.5 lb (6.6 kg) |
| Shipping Weight | 14.9 lb (6.8 kg) |
| Manufacturer | BOSE |
|---|
