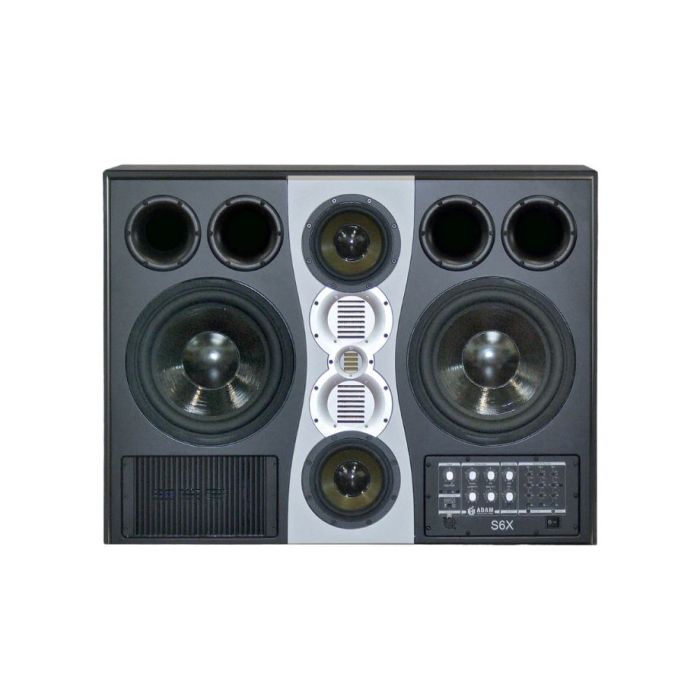

Adam S6X Main monitor, 4-way system
Brand
ADAM
The S6X and S7A Mk2 main monitors are designed for large control rooms and film studios. They use a symmetrical concept to increase the realistic reproduction of ADAM monitors to higher sound pressure levels.
The S6X and S7A Mk2 main monitors are designed for large control rooms and film studios. They use a symmetrical concept to increase the realistic reproduction of ADAM monitors to higher sound pressure levels. ADAM has avoided the typical overloading of the bass range that can often be found in main monitors. A wide horizontal radiation characteristic and moderate vertical beaming are crucial factors to minimize the impact of ceiling and floor reflections and achieve neutral sound reproduction at high volumes.
Product Spec
| Subwoofer | |
| Number | 2 |
| Basket Ø | 12" (305 mm) |
| Voice coil Ø | 3" (75 mm) |
| Cone material | HexaCone |
| Woofer | |
| Number | 2 |
| Basket Ø | 7.5" (186 mm) |
| Voice coil Ø | 2" (50 mm) |
| Cone material | HexaCone |
| Midrange | |
| Number | 2 |
| Type | X-ART |
| Diaphragm area | 26 inch² (16800 mm²) |
| Equiv. Diaphragm Ø | 5.5" (146 mm) |
| Velocity transform ratio | 3.5:1 |
| Diaphragm weight | 0.7 g |
| Tweeter | |
| Number | 1 |
| Type | X-ART |
| Diaphragm area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity transform ratio | 4:1 |
| Diaphragm weight | 0.17 g |
| Built-in Amplifiers | |
| Subwoofer | 2 |
| Type | PWM |
| Amp. power RMS / music | 500 W / 700 W |
| Woofer | 2 |
| Type | PWM |
| Amp. power RMS / music | 250 W / 350 W |
| Midrange | 1 |
| Type | PWM |
| Amp. power RMS / music | 250 W / 350 W |
| Tweeter | 1 |
| Type | PWM |
| Amp. power RMS / music | 250 W / 350 W |
| Control panel | |
| Input Sensitivity | ±10 dB |
| EQ 80 Hz (Quality / Hz / Level) | 3 x 0.2 - 20 / 20 - 200 / ±12 dB |
| High Shelf EQ > 6 kHz | ±6 dB |
| Low Shelf EQ < 150 Hz | ±6 dB |
| Sub Gain | ±4 dB |
| Mid-Woofer Level | ±2 dB |
| Mid level | ±2 dB |
| Tweeter gain | ±4 dB |
| Input connectors | |
| Analog | XLR |
| General data | |
| Panel | Front |
| X-Curve-Filter | yes |
| Frequency response | 23 Hz - 50 kHz |
| THD 90dB/1m > 100 Hz | ≤0.5 % |
| Max SPL with sine wave acoustic 100Hz to 3kHz at 1m | ≥123 dB |
| Max SPL per pair at 1m | ≥133 dB |
| Crossover frequencies | 85 / 800 / 3100 Hz |
| Input impedance | 10 KOhm |
| Weight | 213.8 lb (97 kg) |
| Height x Width x Depth | 28.5" (720 mm) x 37" (940 mm) x 19.5" (490 mm) |
| Manufacturer | ADAM |
|---|
