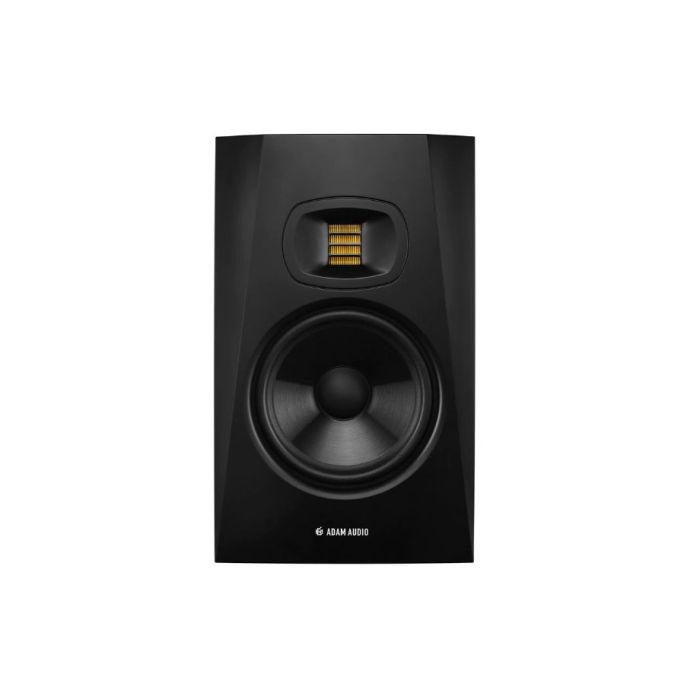

ADAM Audio T7-V Nearfield Monitor, 2-way, 7" woofer

Brand

ADAMADAM
ADAM
Out of stock
SKU
T7-V
AED 930.00
The T7V is a two-way studio monitor designed for vertical use in a nearfield application. The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working. On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair. The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with. The ADAM Sub8 subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end.

The T7V is a two-way studio monitor designed for vertical use in a nearfield application.

The T7V features a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter’s diaphragm provides pristine and extended high-frequency response up to 25 kHz – virtually unheard of in monitors in this price range. The U-ART tweeter is fitted to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series studio monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

On the rear side of the T7V’s beveled cabinet, a rear-firing bass reflex port joins a sturdy metal backplate that’s home to the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amp, while a 50 W Class-D amp serves the woofer. These new powerhouses yield an impressive maximum of 110 dB SPL per pair.

The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprints make the T7V perfectly suited for use in small control rooms for music production, video post-production and broadcast production – a great fit for the modest budgets that many facilities need to work with.

The ADAM Sub8 subwoofer is the perfect match to complement the T7V to extend the capabilities of monitoring in the bottom end.






Product Specification

Woofer

Number1
Basket Ø7" (178 mm)
Cone MaterialPolypropylene

Tweeter

Number1
TypeU-ART
Diaphragm Area4 inch² (2420 mm²)
Equiv. Diaphragm Ø1.9" (48 mm)
Velocity Transform Ratio4:1
Diaphragm Weight0.17 g
WaveguideHPS

Built-in Amplifiers

Number2
Woofer1
TypePWM
Amp. Power RMS50 W
Tweeter1
TypePWM
Amp. Power RMS20 W

Control Options

Input SensitivitySwitchable +4 dBu / -10 dBV
GainYes
High-Shelf- 2 dB, 0 dB, +2 dB
Low-Shelf- 2 dB, 0 dB, +2 dB

Input Connectors

AnalogXLR, RCA
Input Impedance10 kOhm / 20 kOhm

General Data

PanelRear
Frequency Response39 Hz - 25 kHz
THD > 80 Hz0.5 %
Max. SPL per pair at 1 m≥110 dB
Crossover Frequency2.6 kHz
Max. Power Consumption132 W
Weight15.7 lbs (7.1 kg)
Height x Width x Depth13.7" x 8.3" x 11.5” ( 347 mm x 210 mm x 293 mm)
Warranty5 years (2 years warranty plus 3 years optional with product registration)
Delivery ContentsPower cord, Quick Start Guide






More Information
Manufacturer ADAM
